Reducitur Shank T Bolt foraminis

Reducitur Shank T bolt foraminis sunt levius et facilius agunt. Et providere flexibilitate ad connectens filis, vincula vel alias components. Et Bolts de Xiaoguo® Factory propinquos meos cum executione vexillum Cns 4566-1981. Nostri products sunt subruit salis spray temptationis et non occurrit vestri necessitates.

Model:CNS 4566-1981

Mitte Inquisitionem

depictio producti

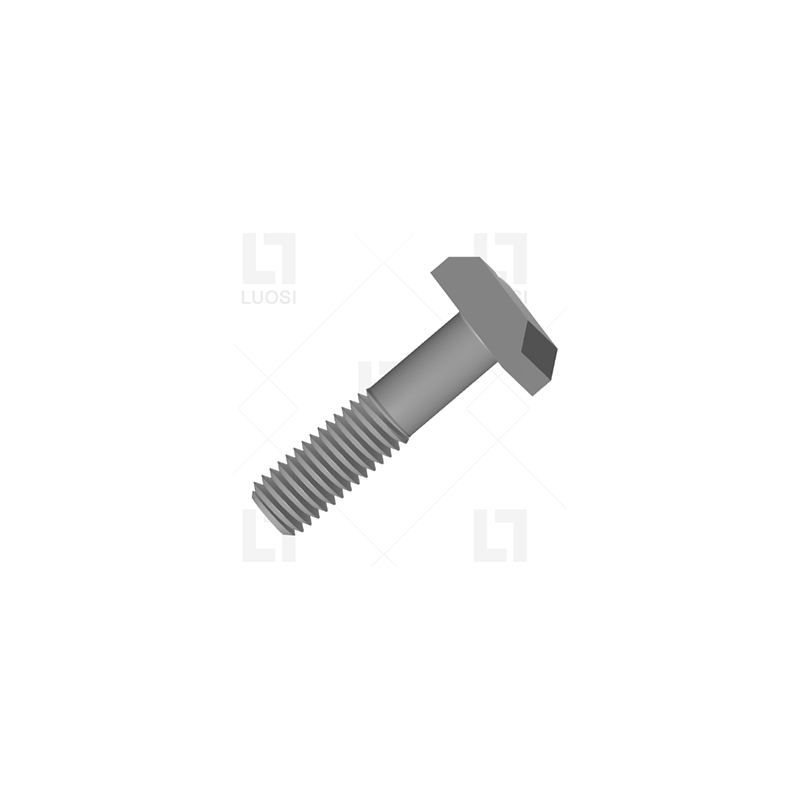

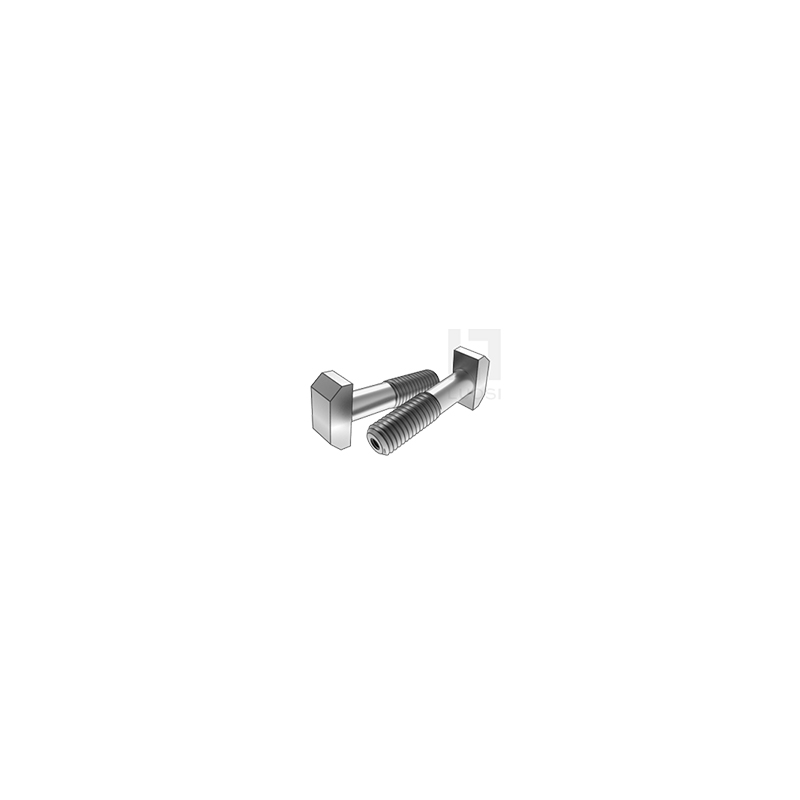

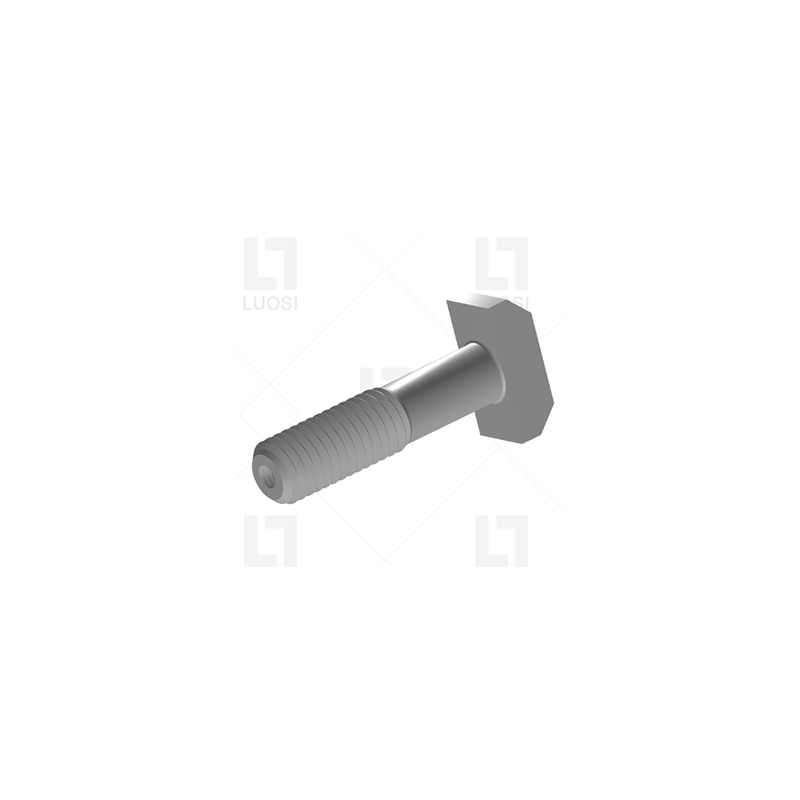

Caput reducta Shank T Bolt cum foraminis similes Rhombus et adhæsit in T-socors ad fixum et non gyrari. In medio parte sua stupra facta tenuior, id est "sonitus virga" et foramen etiam in fundo de cochlea. Interior est cavae.

Features:

Reducitur Shank T-Bolt est installed in solaris potestate plant Tracker. Si vos postulo ut adjust in solaris panel ordinata quotidie, vos can utor eis quia possunt sustinere omnes tempestas. Polus tenues corpus resistere potest tondendas. In foramina sunt clausa in angulo per Cotter paxillos. In solitudine sandstorms, potest ne seras a laxitas.

Reducitur Shank T-Bolt cum foraminis est installed in concentus orator fabrica. Concerti solet requirere tentorium gravibus subwoofers et usura eos potest augendae salutem. Et Pulchribus Pulsas Percussas facilius. Fulmen foramina potest coniungi ferro salutem funibus. Et speaker potest esse duplex-certa LX pedibus (circiter XVIII metris) super turbam.

Reducitur Shank T-Bolts sunt in suspensione ratio formulae unum racing cars. Racing cars plerumque opus mutare furca arma media genus. Serena manubrio potest reducere pondus. Et foraminis filum potest instructi cum velox-release pins. Secundum praecepta de clausa site, virgam potest reponere partes intra V seconds.

Reducitur Shank T Bolt foraminis consilio est maxime prominentibus pluma. When manufacturing some small mechanical equipment, the internal space of the small equipment is compact, and ordinary bolts are too thick to fit in. However, their retraction rod parts can easily pass through the narrow installation holes without affecting the connection strength, allowing the various components of the equipment to be assembled compactly together and ensuring the normal operation of the equipment.

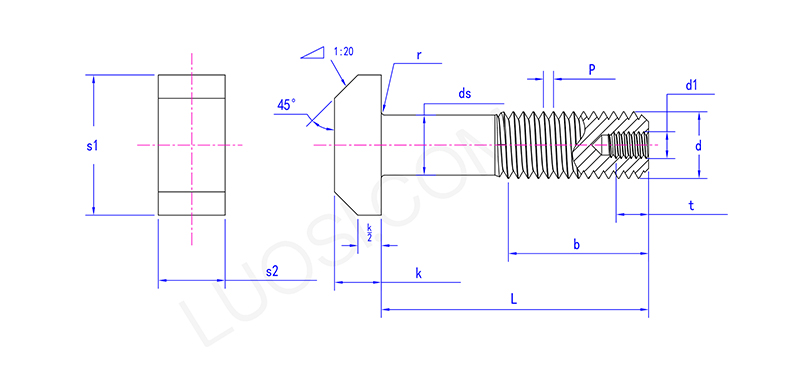

Parametri:

Mons	M42	M48	M56	M64	M72	M80	M90	M100
P	4.5	5	5.5	6	6	6	6	6
D1	M12	M12	M16	M16	M16	M20	M20	M20
t	22	22	26	26	26	33	33	33
k	26	30	35	40	45	50	55	62
S2	42	48	56	64	72	80	90	100
S1	80	88	102	115	128	140	155	170
r	2	2	3	3	4	4	4	5
Ds max	34	38	45	50	55	65	70	80
Ds min	33	37	44	49	53.8	63.8	66.8	78.8
