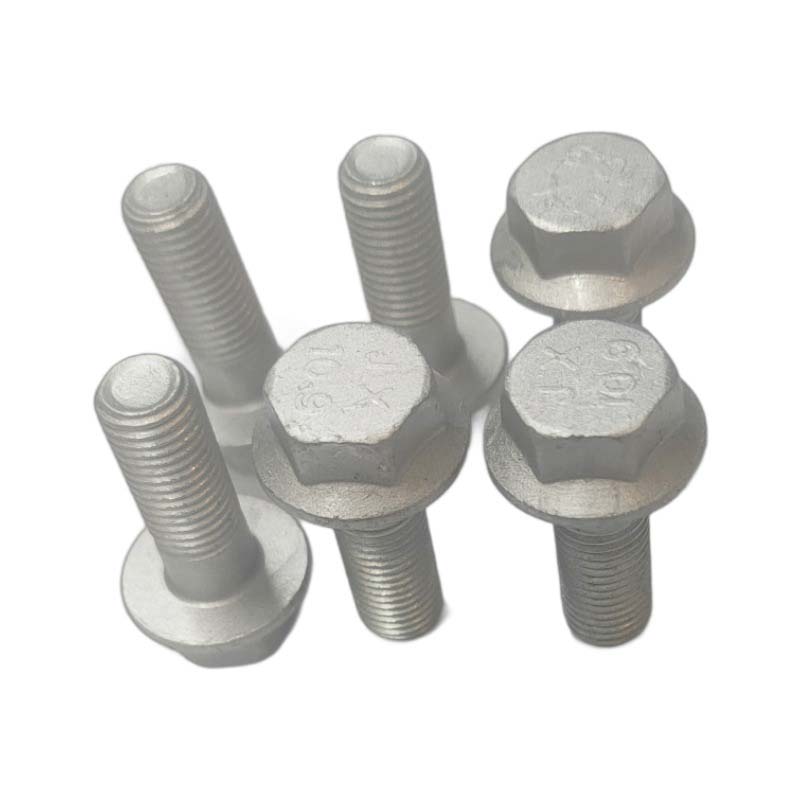

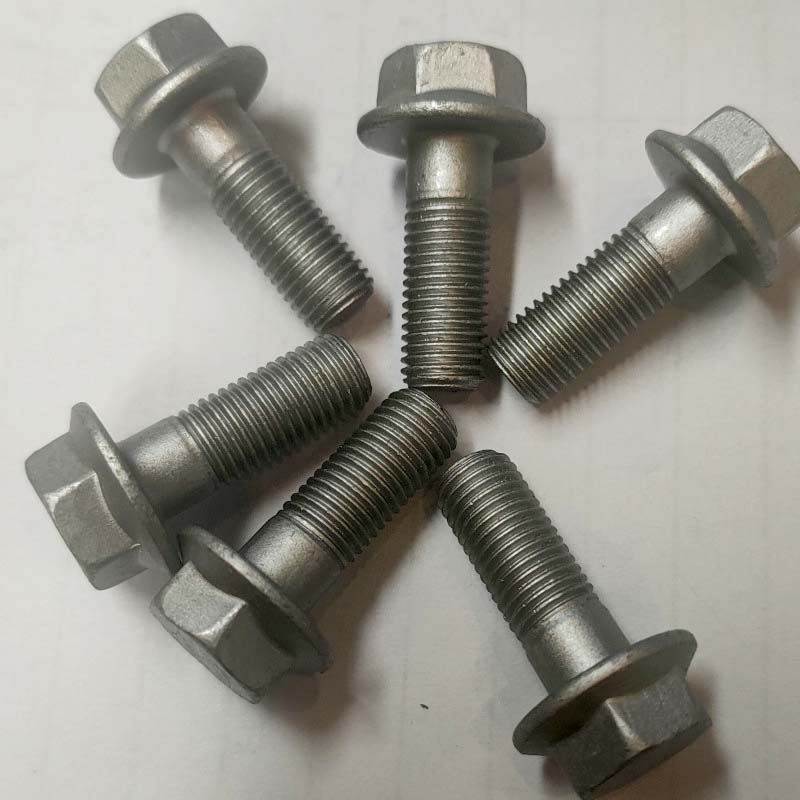

The hexagonal head of the hexagon head bolts with flange is connected to the flange, and the flange is connected to the screw. The end of this bolt connected to the flange has a partially smooth screw, and the rest of the screw has threads. The flange replaces the gasket, which reduces the time for assembly and adjustment during installation. When working at heights, this bolt is more practical than an ordinary bolt. As a professional fastener manufacturer, Xiaoguo® can configure bolts of different materials according to different actual application scenarios. There are many materials such as stainless steel, carbon steel, and alloy steel. The surface can also be treated with corrosion-resistant coatings. There are various sizes, some suitable for large equipment, some suitable for small equipment, and some suitable for precision equipment. We also provide customization, and customize the size, material and other specifications according to needs.

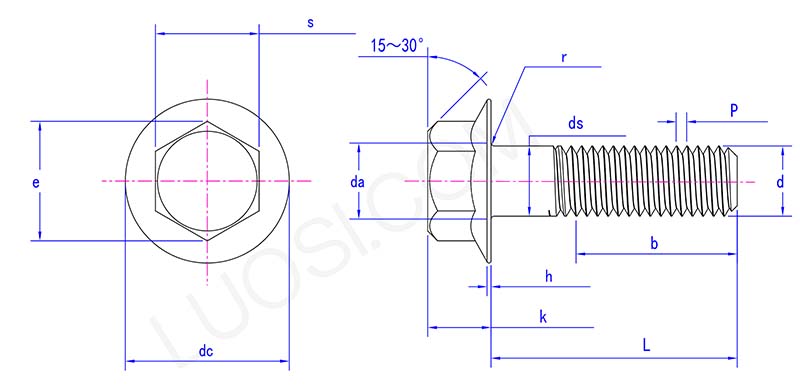

Mon |
M4 | M5 | M6 | M8 | M10 | M12 | M14 | M16 |
P | 0.7 | 0.8 | 1 | 1|1.25 | 1.25|1.5 | 1.25|1.75 | 1.5|2 | 1.5|2 |
dc max |
10.5 | 12 | 14 | 17.5 | 21 | 25 | 29 | 33 |
ds max |
4 | 5 | 6 | 8 | 10 | 12 | 14 | 16 |
ds min |
3.9 | 4.9 | 5.9 | 7.85 | 9.85 | 11.8 | 13.8 | 15.8 |
e min |
7.74 | 8.87 | 11.05 | 13.25 | 15.51 | 18.9 | 21.1 | 24.49 |
h min |
0.6 | 0.7 | 0.8 | 1 | 1.2 | 1.4 | 1.6 | 1.8 |
k max |
4.2 | 5 | 6 | 8 | 10 | 11.5 | 13.5 | 15 |
r min |
0.2 | 0.2 | 0.25 | 0.4 | 0.4 | 0.6 | 0.6 | 0.6 |
s max |
7 | 8 | 10 | 12 | 14 | 17 | 19 | 22 |
s min |
6.8 | 7.8 | 9.8 | 11.75 | 13.75 | 16.75 | 18.65 | 21.65 |
da max |
4.7 | 5.7 | 6.8 | 9.2 | 11.2 | 14.2 | 16.2 | 18.2 |
Hexagon head bolts with flange are used for automobile maintenance and they can be used to replace the parts of the engine. Because the engine vibrates greatly when it is running, they can be used to firmly fix the new parts. At the same time, they are used to repair chassis components, which can ensure that there will be no problems with the chassis when the vehicle is in motion.
Hexagon head bolt with flange can be used for the installation of household appliances such as refrigerators and washing machines. These household appliances will vibrate when in operation. If they are not firmly connected, they will not only make a lot of noise but also be prone to damage. They can tightly connect all the components of household appliances together, reduce the impact of vibration and extend the service life of household appliances.
Hexagon head bolt with flange is used for assembling office desks and chairs. Whether it is a desk with a metal frame or an office chair with a height-adjustable function, they can fix all the components firmly. In daily use, frequent moving and adjusting the height of the desks and chairs will not cause them to fall apart.
The hexagon head bolts we produced can prevent the collapse of terrace furniture. They can distribute the pressure to the shaking table legs.
Do you need a trailer hook pin that won't loosen?
Hexagon head bolts with flange can firmly fix them. The disc of the flange can prevent the bolt head from wearing out the metal, and the hexagonal head shape can withstand the greasy maintenance on the roadside. You don't need to check them frequently. After installation, you can easily move the goods.
